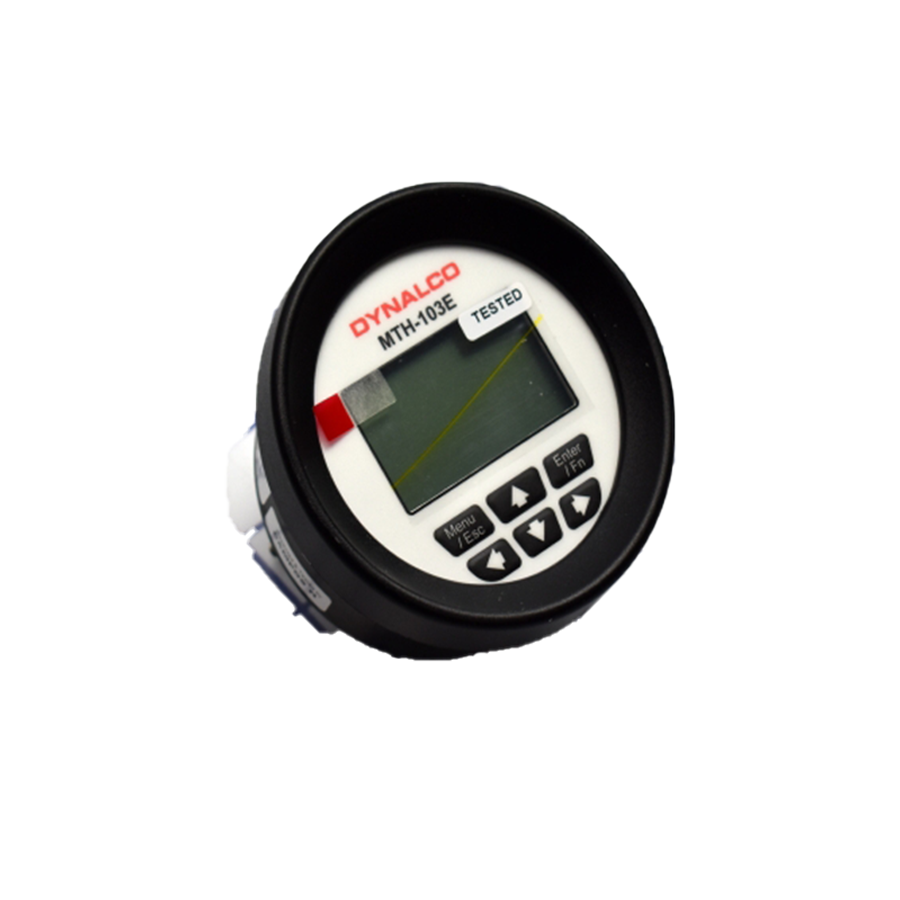

MTH103E
-
Selectable overspeed, underspeed (Class-C) and hours trip
Both signal and power may be derived from magnetic pickup.
High accuracy: 5-digit display, 1 rpm resolution,100,000 hour range.
Field configurable with front keypad for any number of pulses per revolution, trip point value, and for preset / reset hours.
Displays speed, hours, and setpoints on separate screen
Displays Alarm Log history
Fast overspeed reaction time of 100 msec
Backlit display when DC powered
Standard SAE case size fits engine panels with 3-3/8" openings.
High shock and vibration resistance.
Gasketed and spray proof.
Highly resistant to electrical noise.

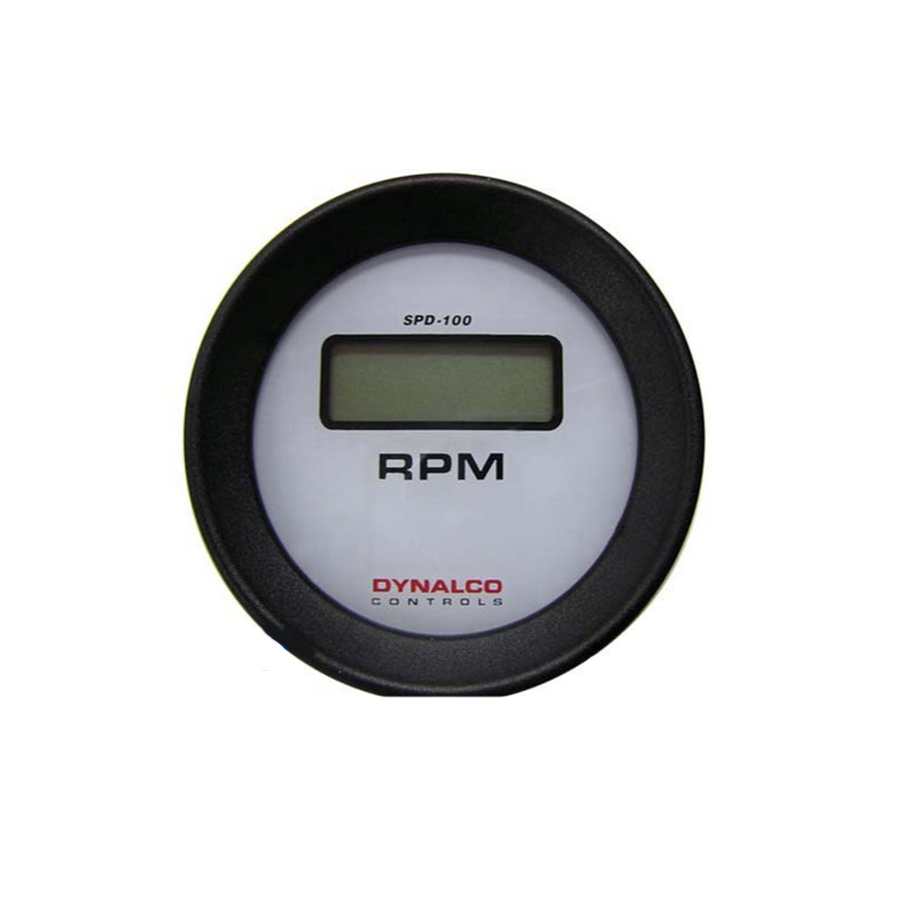

SPD100 Series
-
Signal and power derived totally from magnetic pickup or pulser.
Intrinsically safe. Can be used in hazardous environments with approved Dynalco pickups.
No power supply connections. High immunity to electrical noise.
Can be field-calibrated.
High accuracy: 1 rpm resolution.
High shock and vibration resistance.
Standard SAE case size fits panels with 3-3/8 inch (86 mm) openings.
Gasketed and spray-proof.
Ideal for OEM use.
Can be paralleled with governors and/or speed switches.
Can share existing pickups or pulsers; draws only microamperes.
Ground-free terminals have no polarity; easy installation.

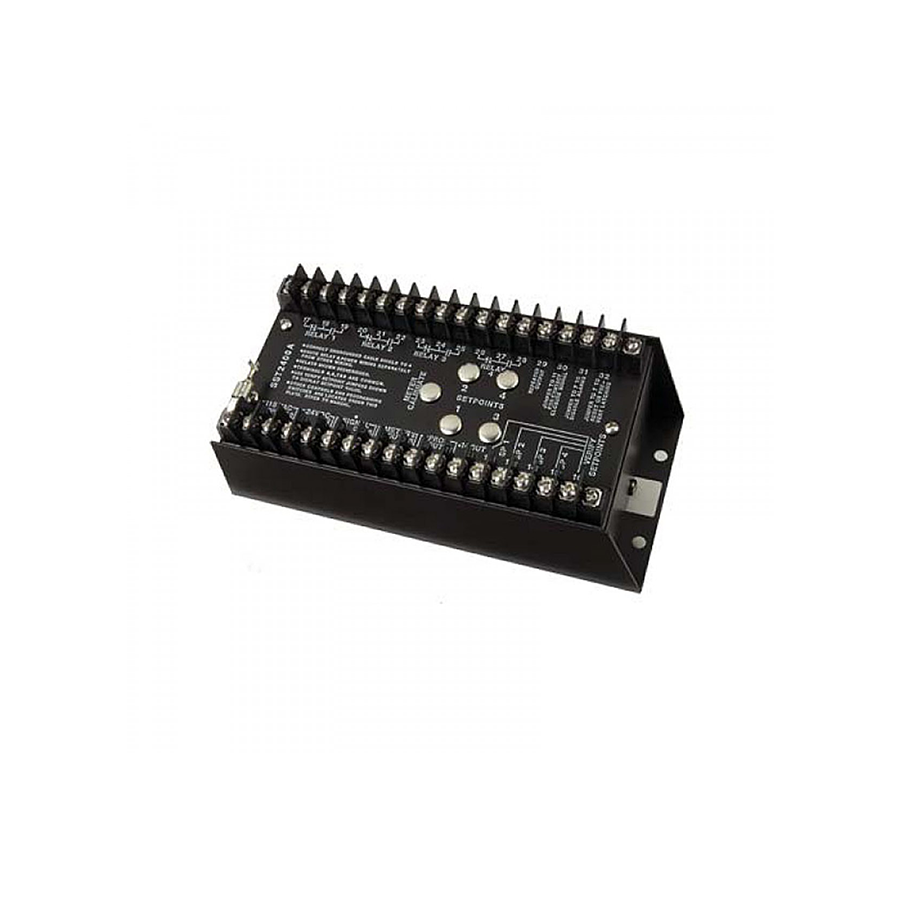

SST-2000 Series
-
Proportional outputs of either 4–20 mA (standard), 0–5 Vdc, or 0–10 Vdc are field selectable. Standard 0-1 mAdc meter output included.
Models available with up to four alarm setpoints.
Field-selectable frequency range.
Field-adjustable sensitivity control.
Field-programmable for many types of sensors, including contact closure input.
Repeater output drives counters and self-powered digital tachometers such as Dynalco’s SPD-100 and SPD-700.
Regulated 14 Vdc output powers active pickups (e.g. M910), accessories, and digital meters such as DPM-105 or MTH-103D, and the 12 Vdc versions of the internally lighted SPD-100L and LST-100L.
Alarms are field-configurable for DPDT (SST-2400 A or -H only), overspeed,underspeed, energize, de-energize, latch, auto-reset.
Integral VERIFY, requires external meter. Permits viewing and setting of setpoint value without actuating the relays.
Input Frequency: Full-scale values from 0–0.1Hz (6 pulses per minute) to 0–50,000 Hz.
Function: Converts frequency input (speed, rate) into linear proportional dc output. Provides alarm setpoints for over- and underspeed control and for sequential, startup, and shutdown switching.
Signal Sources: Includes magnetic pickups, ac generators, contact closures, photocells.
Output Range Capability: Current source up to 50 mAdc output always included.
Alarm Setpoints: Available with two or four relays. Also available with no relays
-
Engines
Machines
I/P drivers
Instrumentation
Process control
Recording
Measurement
SST-7000 Series
-
Accepts 2 or 3-wire speed sensors
0-50 KHz input frequency range
4-20 rnA output (isolated)
0-5 or 0-10 VDC linear output
50 msec (std) or 10 msec (opt) response time
0, 1, 2 or 4 SPDT relays
Failed (open) pickup sensing
Square wave repeater output
10-36 VDC input supply power
Available input isolation transformer
PC programmable over USB port
Front Keypad programmable (for models with LCD Display)

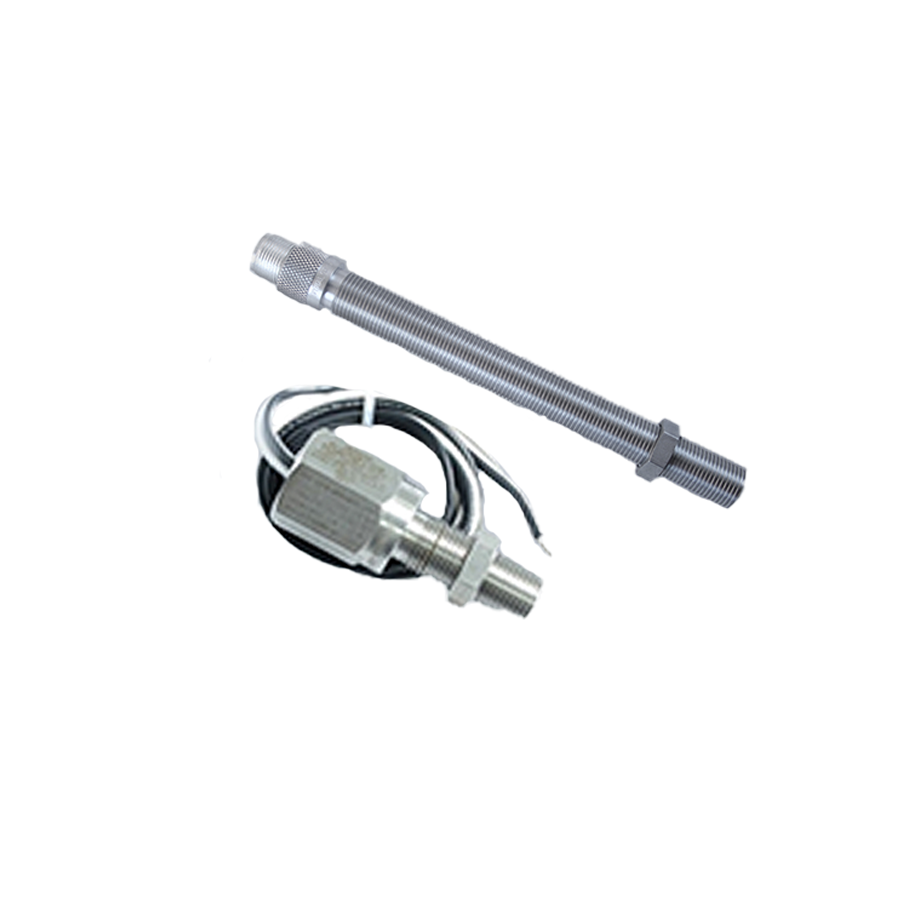

M204-6
-
5/8- 18x6"- 2 Pin- Zener-Limited Ultra High Sensitivity (min. Speed<300 RPM)
Passive (Variable Reluctance)- Ordinary Area

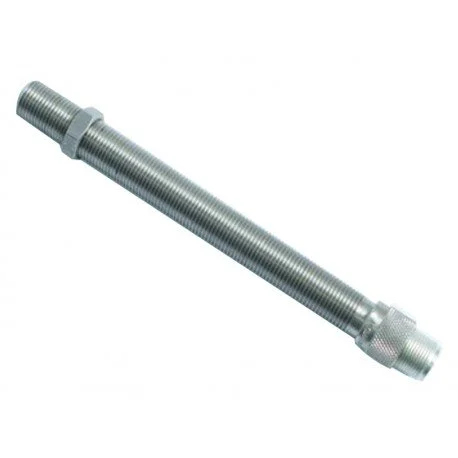

M233-6
-
5/8-18x6"-2 Pin, HIgh Sensitivity (min. Speed>300 RPM)
Passive (Variable Reluctance)- Hazardous Area

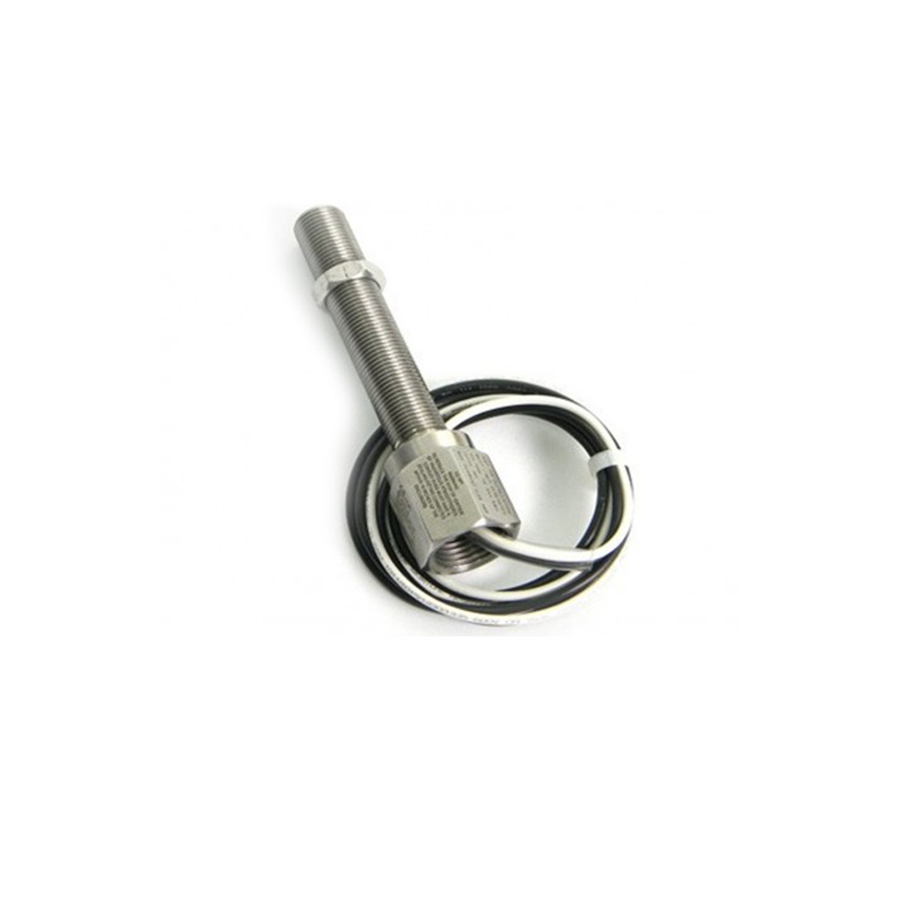

M319
-
5/8-18x3.5"-30" Leads
Passive (Variable Reluctance)- Hazardous Area
Explosion proof housing
M321 Series
-
Passive (Variable Reluctance)- Hazardous Area
Multiple Thread Sizes and Lengths, High Sensitivity (min. Speed>300 RPM)
ATEX and IECEx approved
M919
-
5/8-18 X 5.250 In Thread X 6.375 In
Pin Or Hole (8-32Vdc Input)

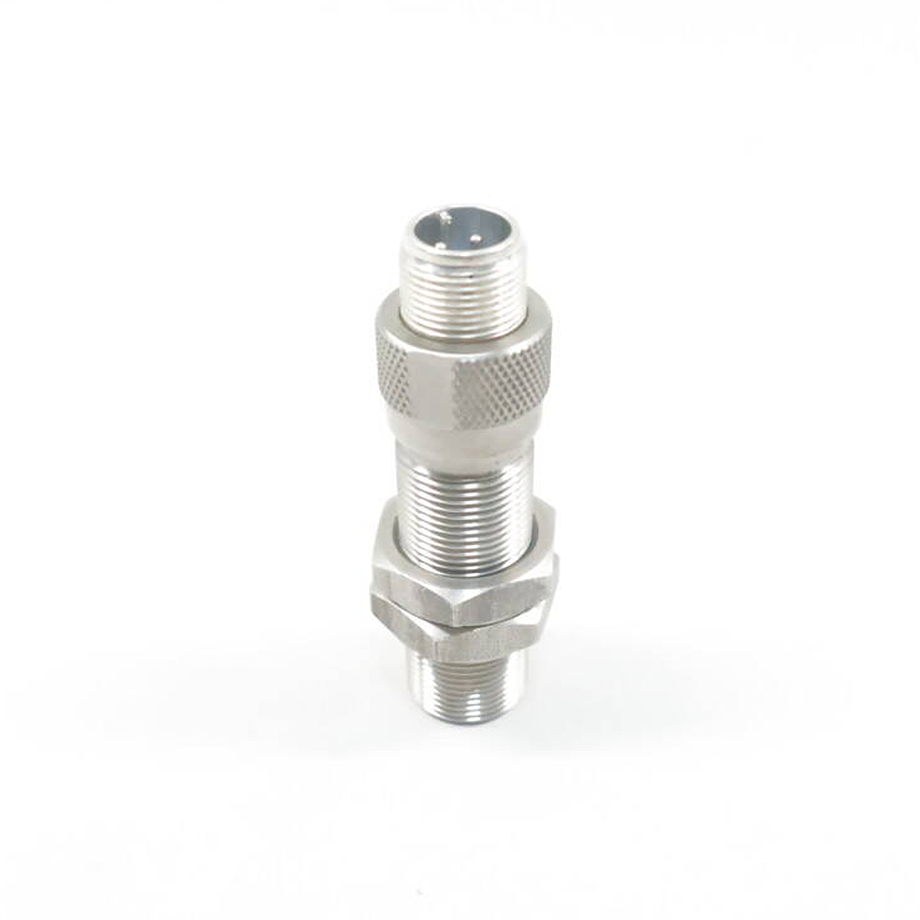

M920
-
Multiple Thread Sizes and Lengths
Active (Powered)- Hazardous Area
ATEX and IECEx approved
Sensor outputs are TTL and Vin-based and are compatible with most PLC input cards
